SolarVenti SV30 Air Dehumidifier

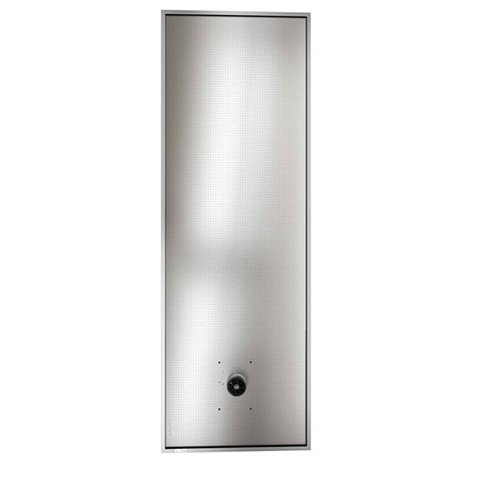

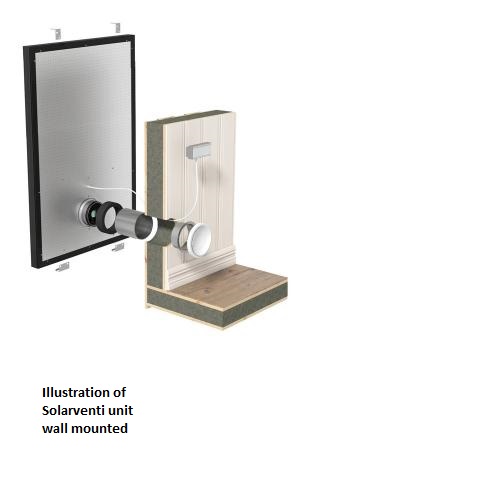

The SV30 solar air collectors are delivered with on/off switch. The panel filter is maintenance free. Solar Air Collector for mounting on wall (included) or roof ( acquisition ) Rooms: Covers normally minimum 150m² Maximum performance: 2000 watt Fan Performance: 100 – 150 m 3 /hour Size: 300 x 102 x 7,5 cm Managing System: SV Regulator 1 SolarVenti SV30 air collector is for 150 m 2 of space and may be mounted horizontal on the roof or wall – or vertical on the wall. It heats ca. 150 m 3 in blown air per hour up to 40K at full solar radiation. This collector may be delivered with an inline fan for 33% air flow. Solarventi SV30 comes complete with accessories and kit ready for mounting on a wall. Kit for mounting on the roof must be purchased separately . There are two roof SV30 versions: 1) One with complete Mounting Kits for Roof Tile / Fibre Cement 2) One with complete Mounting Kits for Steel / Roofing felt The panel filter is maintenance free. Further information: Recommended max area of the house in m 2 150 m 2 ( 179.40 yd 2 square yards ) Maximum air flow – m 3 /h 200 m 3 ( 261.59 yd 3 cubic yards ) Complete replacement of the air in the room In less than 2 hours Utilization of solar radiation (Efficiency) 70% Estimated average energy production kWh/m 2 per year * 620 kWh Estimated energy production kWh/SV-unit/year * 435 kWh Rise in temperature compared to outdoor temperature Approx. 40 degrees K (e.g. from 10 o C to 50 o C) Dimension (panel) in mm: L. x W. x D., excl. package 3000 x 1020 x 75 mm (118.11″ x 40.16″ x 2.95″) Dimension (panel) in mm: L. x W. x D., incl. package 3060x 1060 x 90 mm (120.47″ x 41.73″ x 3.54″) Dimension (roof mounting kit): L. x W. x D., incl. package 1080 x 260 x 220 mm (42.52″ x 10.24″ x 8.66″) Panel size in m 2 3 m 2 ( 3.58 yd 2 ) Solar cell – watts / power generation 18 watt Ventilator – watts / power consumption 5,1 watt Weight (panel) – kg, excl. package 29 kg. ( 63.93 Lb ) Weight (panel) – kg, incl. package 31 kg. ( 68.34 Lb) Weight (roof mounting kit) – kg, incl. package 7 kg. ( 15.43 Lb) Maintenance free (number of years) Up to 15 years Product warranty 5 years Framework (Material) Aluminium (seawater resistant) Air outlet on collector – Dimensions in mm 125 mm ( 4.92″ ) Cover plate (transparent) Polycarbonate Indoor inlet valve in the house 125 mm ( 4.92″ ) Humidity stop – to prevent condensation water and back drafts Yes Tube for wall mounting, screws etc. Yes (* Values are under Danish weather conditions. – Much higher values ??in countries closer to the equator.) Accessories: Cooling and extraction kit with extra solar cell No Cooling and extraction kit without extra solar cell Yes Roof mounting kit, type 1, for tile etc. Yes Roof mounting kit, type 2 for steel plate roof etc. Yes Basement mounting kit Yes Visible indoor: Frequently Asked Questions How is SolarVenti different from a conventional electric dehumidifier? SolarVenti runs entirely on solar power — zero electricity cost after installation. Unlike conventional dehumidifiers it introduces warm, dry outdoor air while exhausting damp indoor air, and continues working efficiently in cold weather where electric dehumidifiers lose effectiveness. How is SolarVenti installed? Wall-mounted units require only a drill and 2–4 hours for DIY installation. Roof mounting is possible but most customers prefer a professional for that option. The system is maintenance-free — rain washes the solar panel clean automatically, and the panel filter only needs an annual rinse. What room size is SolarVenti suited for? The SV3 suits spaces up to approximately 50m³ (e.g. a standard bedroom). The SV7 suits up to 100m³, and the SV14 and SV20 models are designed for larger spaces such as living areas, garages and commercial spaces. Contact us if you are unsure which model suits your space. Product specifications sourced from SolarVenti — solarventi.com.au
