SolarVenti SV20 Solar Air Dehumidifier

Damp rooms, stale air and cold mornings add up to mould and heating costs. The SolarVenti SV20 Solar Air Dehumidifier is a solar air unit that uses sunlight to warm and move air into the space, with no running cost while the sun is up. Airdry is the Australian distributor for SolarVenti, so you get local advice on sizing. Call 1300 789 333 or use the enquiry form to check it suits your room.

Airdry is an authorised Australian dealer, based in Erina NSW and serving customers Australia-wide since 2008. Prices include GST, we confirm freight before you pay for large items, and you have 30 days to return it unused.

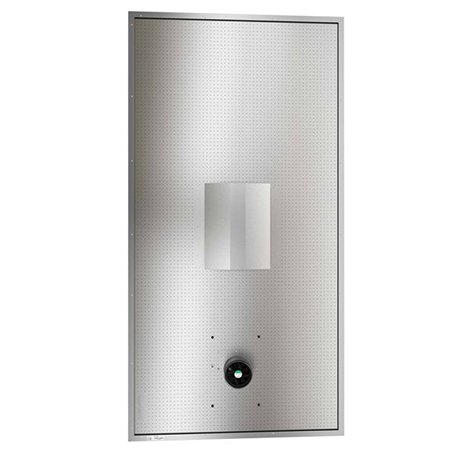

The SV20 solar air collectors are delivered with on/off switch. The panel filter is maintenance free. SolarVenti SV20A Air is normal for rooms up to 100 m2 – and mounted either horizontally or vertically on a wall or on the roof. The heats approx. 80-140 m3 of air between approx. 30 degrees per hour at full sunlight. SV20A comes with all accessories for installation. A SV20 air collector usually cover at least 250m2 SV20 comes with complete accessories and installation kits ready for wall or roof. The heats about 150 m3 of air per hour from 20 to 30 degrees Co. – depending on the sunlight. And blowing the heated air into the building.SolarVenti recommend that SV20 model fitted with at least 60 degrees. There are two SV20 mounting versions: Switched or Regulator 1) with complete mounting kit for asbestos cement, tile or concrete tile coating. 2) with complete mounting kit to take with steel & flat bitumen. The panel filter is maintenance-free.For more information: Dimension SV model: 1974 x 1004 x 55 mm Boxed SV20 model : 2117x 1100 x 150 mm Boxed of SV20 Roof kit: 1070 x 260 x 170 mm Weight SV panel Packaging: 18.5 kg Weight SV panel with packaging 23.7 kg Frame: Aluminium Colour: Aluminium, white or black (Special order) (Additional charge for white and black) Cover: UV-resistant Lexan (insulating) Absorber: Special felt (black) Air outlet: ø125 Rear: Perforated aluminium plateSolar element: Dimension: 1. 920 x 310 x 9 mm Voltage: 12 Volt Power: 12 WattFan: Manufacturer: SUNON Consumption: 6.2 to 6.8 W Dimension: 120 x 120 x 38 mm Rated output (mounted in the open air): 250 m3/hour Actual performance (mounted in panel): 90 to 200 m3/hourRegulator: Type: SV regulator unit (Reg II) h solar operation – with switch, regulator, pump control and thermostat Material: Anodized Aluminum / Black PlasticOther information: Efficiency: Approximately 60% Temp. increase: Typically 20-3 degrees Even higher temperatures increase by use of small quantities of air Room capacity: In n
