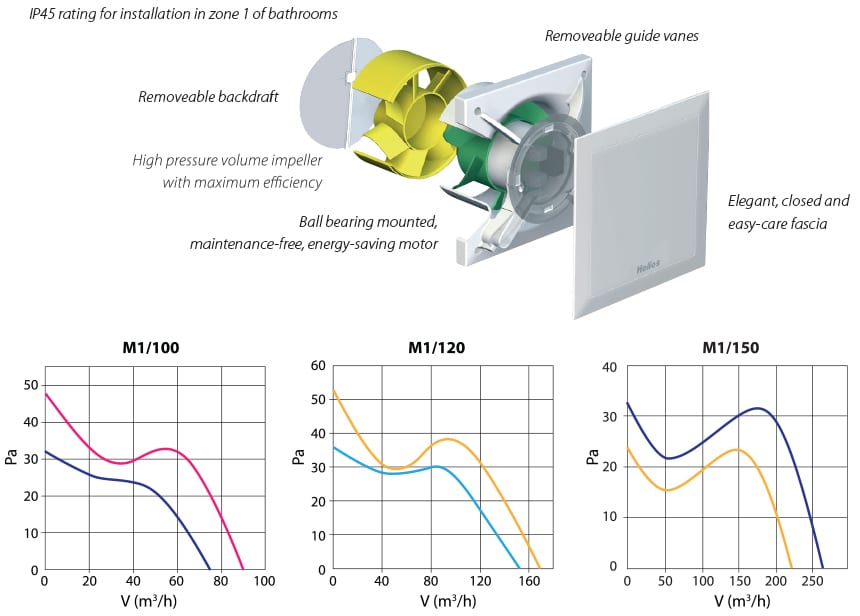

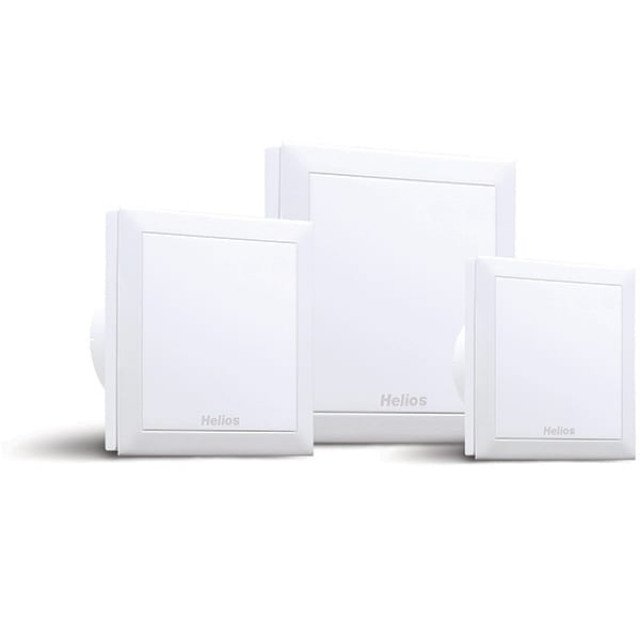

The excellent design of the MiniVent® M1 blends in beautifully everywhere, even in the most demanding room designs.
- IP Rating 45
- Compact designed fascia remains clean and attractive
- High-efficiency impeller
- Backdraft shutter as standard
- Two speed
- Energy efficient – 5 watts at 75m3/h and 10 watts at 310m3/h
- Bathroom Exhaust Fan
Built-in Energy Saving Features (optional):
Run-on Timer (N) Humidity Sensor (F) Presence Sensor (P)

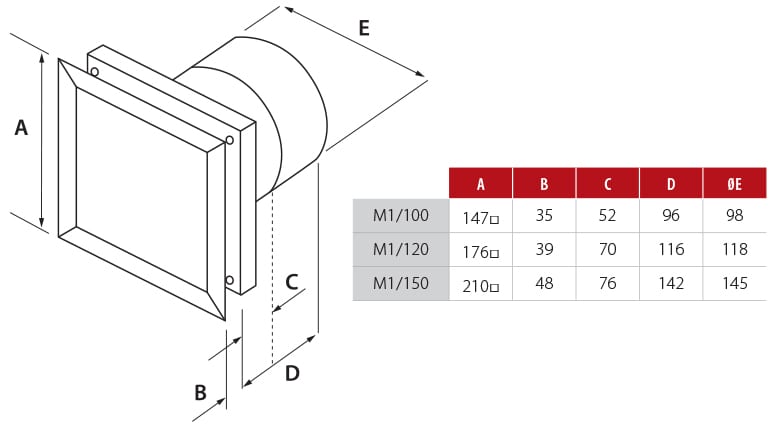

Model | Code | Dia ⌀ | V | Hz | W | Phase | RPM | L/s | m3/hr | dBA@3m |
M1/100 | ALV6171 | 98 | 240 | 50 | 9 | 1 | 2650 | 25 | 75-90 | 30 |
M1/120 | ALV6360 | 118 | 240 | 50 | 13 | 1 | 2350 | 54 | 150-170 | 36 |
M1/150 | ALV6041 | 145 | 240 | 50 | 10 | 1 | 1900 | 86 | 220-260 | 39 |
M1/150 0-10v | ALV6044 | 145 | 240 | 50 | 10 | 1 | 1900 | 14-72 | 50-260 | 39 |
